CORNER ROLL-UP COVER JM

Roll-up cover for horizontal / vertical application

CORNER ROLL-UP COVER JM is an innovative P.E.I application: a roll-up cover that protects more than one side, both vertically and horizontally.
It is rolled up using a P.E.I. winding mechanism driven by a motor with integrated side chains fixed to the shutter, creating a rack effect.
This roll-up cover is provided with a new, 15.5 mm thick JM aluminium profile.

It is possible as a standard to equip the cover with illumination inside.

  • Winding diameter: Ø 150 mm
  • Material: Silver anodised aluminium
  • It can be walked upon with higher performance than J
  • Impact resistance (breakthrough tests)

Patented

Led

Led

Roll-up for 2 axes

VERTICAL / HORIZONTAL roller shutter protection

In the CORNER ROLL-UP roller shutter it is possible to have the internal lighting system as standard

Portholes

Portholes

Roll-up for 2 axes

VERTICAL / HORIZONTAL roller shutter protection

Option of viewing panel in versions:
■ transparent
■ tinted for welding work
■ tinted for laser working
(after specification of equipment type and radiant source)

Profiles

Aluminium profile

Roll-up for 2 axes

ROLL-UP CORNER. It is equipped with a new 15.5 mm thick JM aluminium profile.

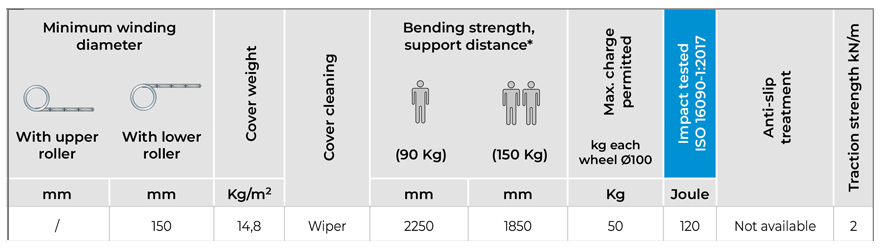

Characteristics

Roll-up for 2 axes

ROLL-UP CORNER. It is equipped with a new 15.5 mm thick anodised Grey JM aluminum profile. Maximum buildable width 6000 mm.

Terminals

Fixing Terminals

Roll-up for 2 axes

Terminals for fixing the shutter on the machine
