SoffiettiCircolari-2017

These are used when strong rotation resistance is required (for instance, to cover ball screws) and where a very compact closed lenght is required.

  • Highly reliable bellows
  • No tooling costs
  • High resistance to mechanical and dynamic stress
  • With selected edging (in safety colors upon request)
  • Resistance to coolants and oils
  • Minimum internal diameter starting at 20 mm
  • Suitable for high temperatures
  • Any size external diameter
  • Available with guide bushings and reinforcement rings
  • Good price/quality ratio

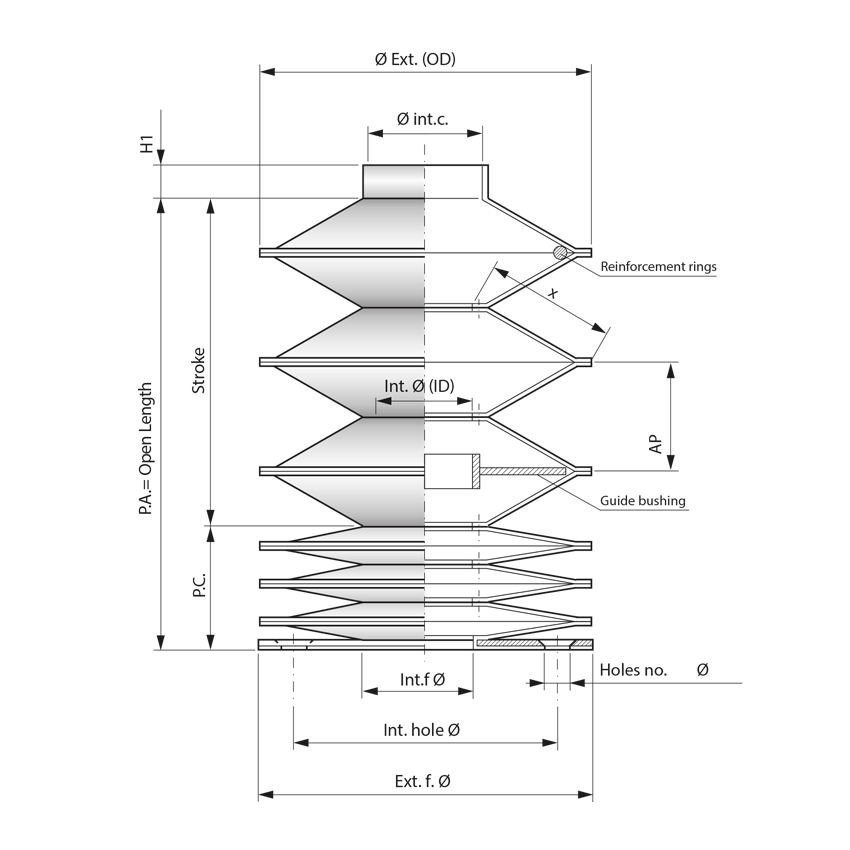

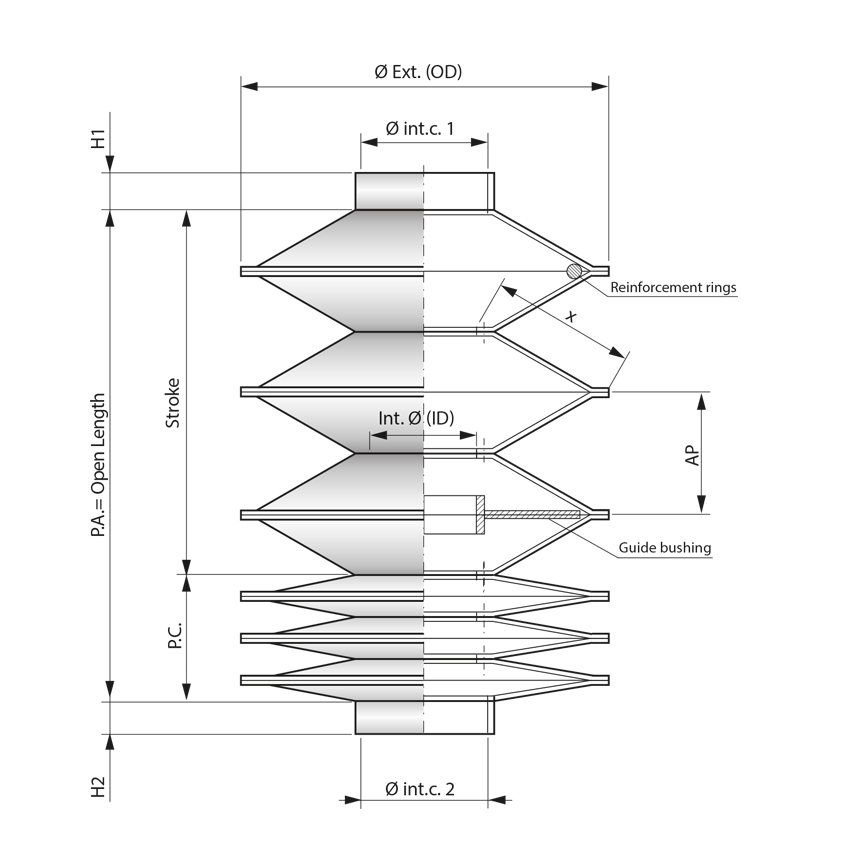

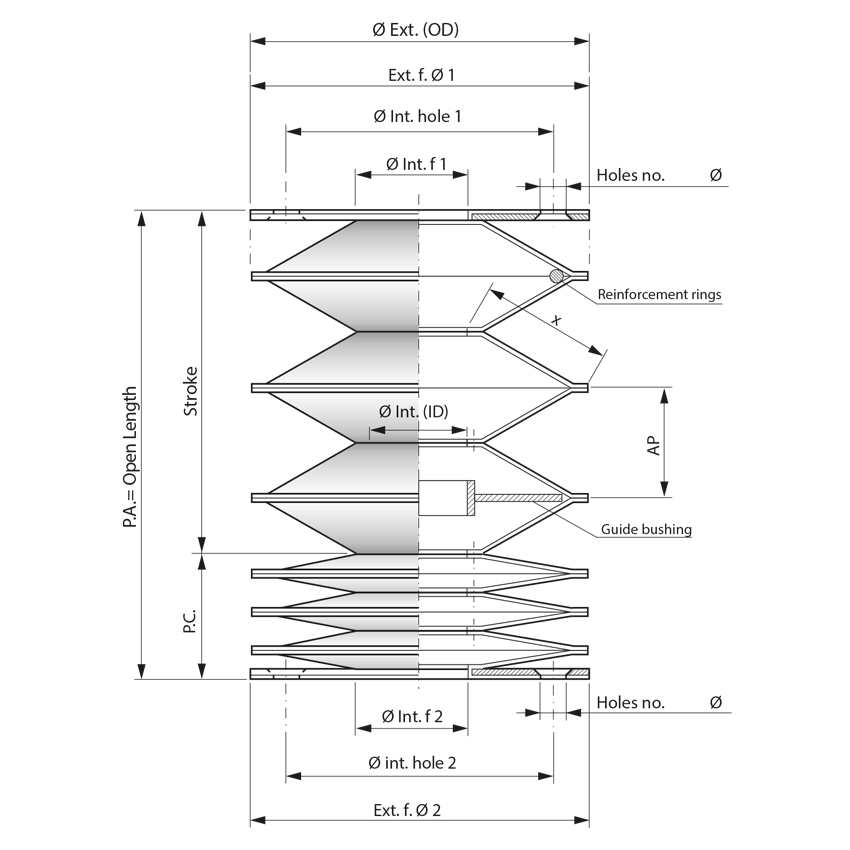

Formula for calculating the CLOSED LENGTH

Note: When steel rings are required inside the folds, the P.C. is calculated by our engineering department.

Available Materials

  • Polyester coated with Neoprene* and Hypalon*
  • Polyester coated with Nitril rubber
  • Polyester coated with Polyurethane
  • Polyester coated with PVC
  • Kevlar* coated with Neoprene* and Hypalon*
  • Kevlar* coated with Polyurethane
  • Fiberglass coated with Silicone and Neoprene*
  • Fiberglass coated with PVC
  • Aluminum-coated fabrics
* Neoprene, Hypalon and Kevlar are registered Dupont trademarks
* see materials
