Extruded roll-up covers

Extruded aprons are particularly robust: they are used where maximum protection of the guides from hot chips is required.
Their funtioning may be “drop-down” or by P.E.I. roll-up mechanism.

Aluminium extruded profiles type J

Tested on impact

Extruded aprons

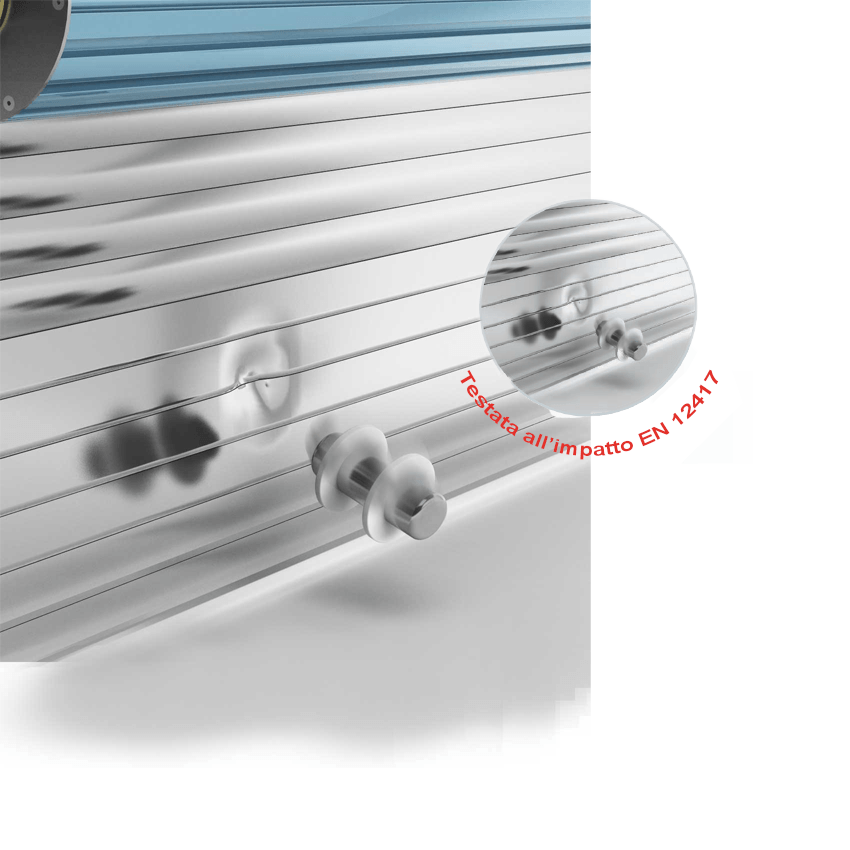

All “J”-series apron covers are IMPACT TESTED according to EN 12417 Standard.

Profile shapes

Extruded aprons

Extruded flexible aluminium covers

Aluminium profile shapes available for J-type roll-up covers.

* Patented

Technical characteristics

extruded_j

Technical characteristics of the J-type aluminium profiles

Terminals

Extruded aprons

Extruded roll-up covers in aluminium:

Terminal shapes for J-type aluminium profiles.

Terminal code

L1xL2xS

BxH

CDE

Material

Description

Cover code

3T

20×6

Al

Cover

JB

5T/1

15x15x3

Al-Ac

Corner

JB

5T/2

20x20x3

Al-Ac

Corner

JB

5T/3

30x30x3

Al-Ac

Corner

J / JB / JL / JM

5T/4

40x40x5

Ac

Corner

J / JH / JM

6T

30x30x2

Ac

Hinged

AKS-1/AKS-4 J/JL/JH/JB/JM

7T

Drilling performed on request

18
20
35

ø 5,50
ø 8,50
ø 13

ø 10
ø 14
ø 20

Al

Cover

JL
J
JH

8T

30

11

22

Al-Ac

Corner

JM

Al = Aluminium Ac = Steel

Aluminium extruded profiles type AKS

Shapes

Extruded aprons

Shapes and dimensions available for AKS roll-up covers

Technical characteristics

Extruded aprons

Terminals for AKS type aluminium roll-up covers

Standard profiles

Extruded aprons

Shapes available for the AKS roll-up covers

Terminal code

L1xL2xS

BxH

CDE

Material

Description

Shutter code

1T

25×5,5

Al

Flat

AKS-1
AKS-4

2T

20x30x5,5

Al

Angular

AKS-1
AKS-4

6T

30x30x2

Ac

Zip

AKS-1
AKS-4 J/JL/JH/JB/JM

Al = Aluminium  Ac = Steel
